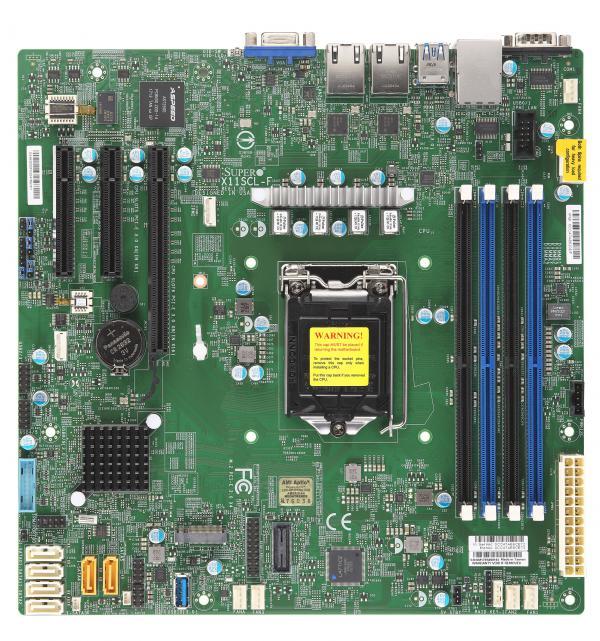

Supermicro X11SCL-F C242 MATX
Supermicro X11SCL-F C242 MATX
Warranty:
3 Years - Supermicro
Chipset:
Intel C242
Form Factor:
microATX, 9.6" x 9.6"
CPU Support:
Xeon-E up to 95 TDP, 2100/2200 Series
Memory Type:
DDR4 Unbuffered ECC
Memory Slots:
4
Memory Speed:
Up to 2666 MHz
Memory Capacity:
Up to 128GB
Expansion Slots:
1x PCIe 3.0 x16, 2x PCIe 3.0 x8
SATA Ports:
6x SATA3 (2x SuperDOM Support)
M.2 Slots:
1x PCIe 3.0 x4 2280~22110
Network:
2x Intel I210-AT 1GbE, 1x RJ45 for IPMI
Video Out:
1x VGA (ASPEED AST2500)
USB Ports (internal):
4x USB 2.0, 2x USB 3.1 Gen1, 1x USB 3.1 Gen1 Type-A
USB Ports (rear):
2x USB 2.0, 2x USB 3.1 Gen1 Type-A
COM Ports:
1x COM (Rear), 1x COM (Header)
TPM:
1x TPM Header
Price: $235.00
