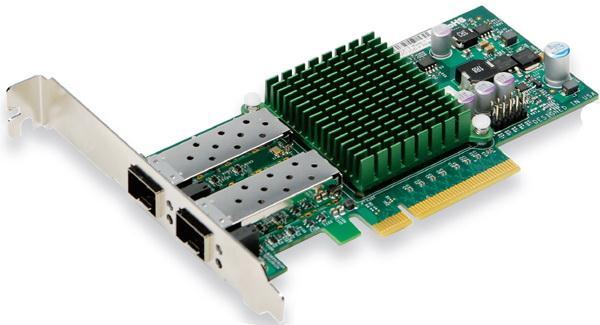

SuperMicro AOC-STGN-i2S Intel 82599ES Dual SFP+ 10Gbps
SuperMicro AOC-STGN-i2S Intel 82599ES Dual SFP+ 10Gbps
Warranty:
1 Year - SuperMicro
Dimensions:
4" x 2.73"
Interface:
PCIe 2.0 x8 (5GT/s)
Chipset:
JL82599ES
Connection:
Dual SFP+
Speed:
10Gbps
Low Profile:
Yes
OS Support:
Windows, VMWare, RedHat, FreeBSD
MFG Part Number:
AOC-STGN-I2S
General Features:
Intel 82599ES 10GbE controller
Compact size low-profile standard form factor
PCI-E x8 2.0 (5GT/s)
Load balancing on multiple CPUs
iSCSI remote boot support
Fibre Channel over Ethernet (FCoE) Support
Intel PROSet Utility for Windows Device Manager
RoHS compliant 6/6
Support both DAC Twin Axial and LC Fiber-Optic SR Cables
Load Balancing on Multiple CPUs
iSCSI Remote Boot Support
Fibre Channel over Ethernet (FCoE) Support
Intel QuickData Technology
VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments

I/O Features:
Intel QuickData Technology - DMA engine that enhances data acceleration and lowers CPU usage
Direct Cache Access (DCA) to avoid cache misses
MSI-X support to minimize the overhead of interrupts and allows load-balancing between multiple cores/CPUs
Tx/Rx IP, SCTP, TCP and UDP checksum offloading capabilities (IPv4, IPv6)
Receive and Transmit Side Scaling for Windows environments and Scalable I/O for Linux environments

Virtualization Features:
Supports virtualization features such as VMDq, Next-generation VMDq (64 queues per port) and PC-SIG SR-IOV implementation
IPv6 Offloading
Advanced Packet Filtering
VLAN support to allow creation of multiple VLAN segments

Manageability Features:
Preboot eXecution Environment (PXE) support
Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistics counters
iSCSI remote boot

Cable Support:
SFP+ direct attached twin axial cables, up to 10 meters
Dual LC fiber-optic SR cables, up to 300 meters
Price: $295.00
