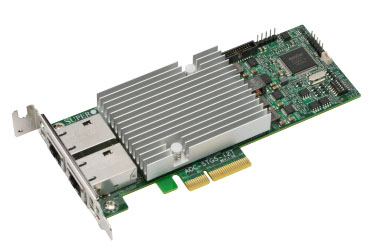

SuperMicro AOC-STGS-i2T Intel X550 Dual Port 10Gbps
SuperMicro AOC-STGS-i2T Intel X550 Dual Port 10Gbps
Warranty:
3 Years - SuperMicro
Dimensions:
5.9" (l) x 2.71" (h)
Interface:
PCIe 3.0 x4 (Up to 8GT/s)
Chipset:
Intel X550 AT2
Connection:
Dual RJ45
Speed:
10 Gbps
Low Profile:
Yes
Power Consumption:
11W Max
OS Support:
Windows, Linux, FreeBSD, UEFI, VMWare
MFG Part Number:
AOC-STGS-i2T
Note:
OEM Product. Must Be Bundled With Supermicro Server
General Features:
  • Asset Management Features with thermal sensor
  • Intel's second generation, dual-port 10GbE controller with integrated MAC and PHY
  • IEEE802.3az Energy Efficient Ethernet (EEE)
  • Unified networking delivering LAN, iSCSI and FCoE over 10GbE VXLAN and NVGRE
  • VMDq, PCI-SIG SR-IOV for Virtulization Environments
  • Intel Ethernet Flow Director for hardware-based application traffic steering
  • Data Center Bridging (DCB) with FCoE stateless offload
  • Jumbo Frames support up to 15.5KB
  • Time Sync IEEE1588
  • NC-SI for IPMI support
  • RoHS compliant 6/6
    		•
    Price: $320.00
