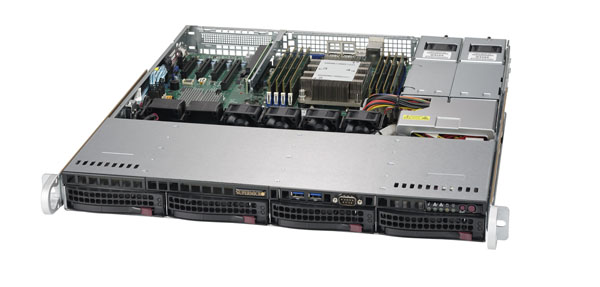

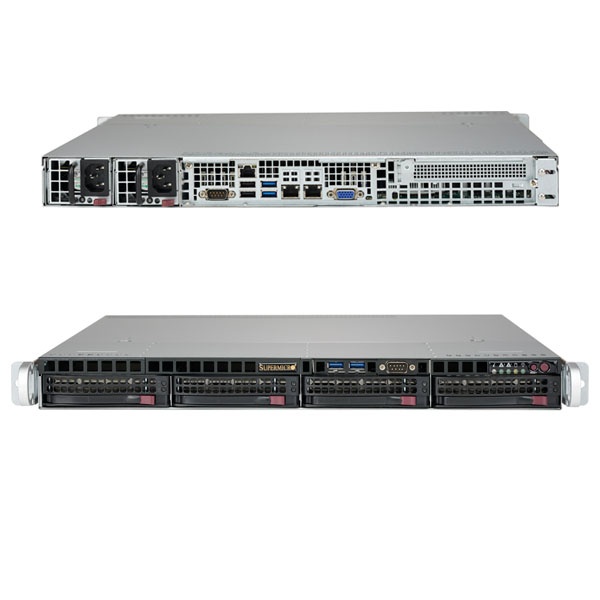

Supermicro EPYC 1013S-MTR + H11SSL-i 4x Hot Swap 1U
Supermicro EPYC 1013S-MTR + H11SSL-i 4x Hot Swap 1U
Warranty:
3 Years - Supermicro
Dimensions (HxWxD):
1.7" x 17.2" x 19.85"
Material:
Steel
Weight:
20 lbs (net), 33 lbs (gross)
Motherboard:
Supermicro H11SSL-i (included)
Processor:
AMD EPYC 7000 Series (Up to 200W)
Graphics:
1x VGA, ASPEED 2500BMC
Memory Slots:
8
Memory Speed:
Up to 2666 MHz
Memory Capacity:
Up to 1TB Registered ECC DDR4
SATA Support:
4x SATA3
SAS Support:
4x SAS3 via Add In Card
NVMe Support:
1x NVMe M.2
SuperDOM:
2x SATA DOM
Expansion Slots:
1x PCIe 3.0 x16 FH/HL
Network:
2x 1GbE (Intel I210), 1x IPMI
External Bays:
4x 3.5" Hotswap
USB Ports:
2x USB 2.0 (2x Rear)
COM Ports:
1x COM (rear)
TPM Support:
TPM 1.2 header
Power Supply:
400W 1U Redundant PMbus
Cooling Fans:
4x 40x28mm
Chassis:
CSE-813MFTQC-R407CB
Price: $956.00
