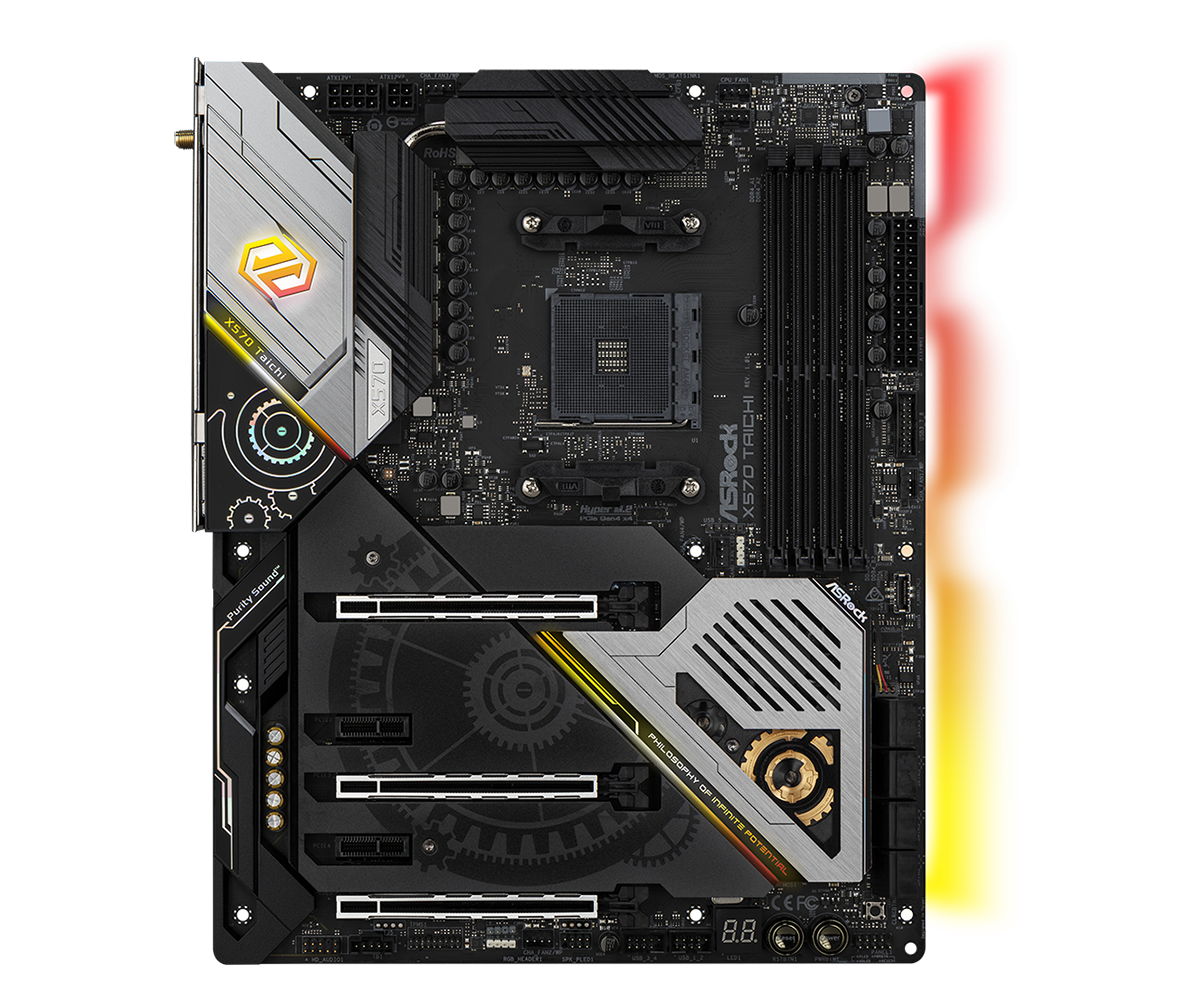

ASRock Taichi X570 Ryzen ATX
ASRock Taichi X570 Ryzen ATX
Warranty:
3 Years - ASRock
Chipset:
AMD X570
Form Factor:
12.0-in x 9.6-in, ATX, 2oz Copper PCB
CPU Support:
Ryzen 3000/5000-Series (Requires BIOS Ver. 3.4)
Memory Type:
DDR4 ECC & non-ECC Unbuffered
Memory Slots:
4x DIMM
Memory Speed:
Up to 4400 MHz (matisse)
Memory Capacity:
Up to 64GB
Expansion Slots:
3x PCIe 4.0 x16, 2x PCIe 4.0 x1
SATA Ports:
8x SATA3
M.2 Slots:
2x M.2 2280, 1x M.2 221100
Network LAN:
1x 1GbE, Intel I211AT
Network WIFI:
802.11ax, BT 5.0
USB External:
2x USB 3.2 Gen2 (Type A+C), 6x USB 3.2 Gen1
USB Internal:
4x USB 2.0, 2x USB 3.2 Gen1, 1xUSB 3.2 Gen2 Type C
Audio:
7.1 CH HD (Realtek ALC1220 Audio Codec)
Video Out:
1x HDMI
TPM Support:
1x TPM Header
Price: $350.00
