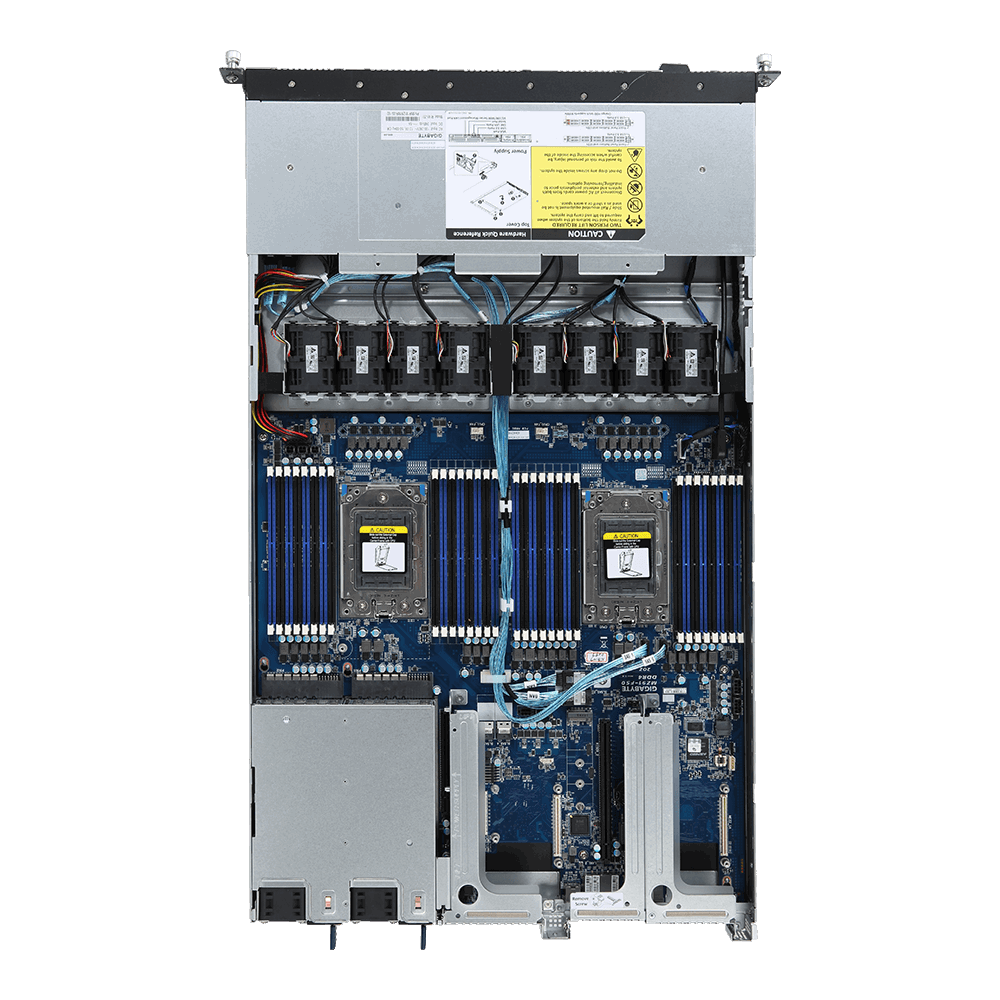

Gigabyte 2-EPYC R181-Z91 + MZ91-FS0 1U rev A00
Gigabyte 2-EPYC R181-Z91 + MZ91-FS0 1U rev A00
Warranty:
3 Years - Gigabyte
Dimensions (HxWxD):
43.5mm x 438mm x 710mm / 1.7" x 17.24" x 27.95"
Material:
Steel
Weight:
13kg net, 21kg gross
Motherboard:
MZ91-FS0
Processor:
AMD EPYC 7000 series, up to 180W TDP
Graphics:
ASPEED AST2500
Memory:
Max 4TB ECC RDIMM, 32x 288-pin Slots
SATA/SAS Support:
8x 2.5"
U.2 Support
2x 2.5"
Expansion Slots:
2x PCIe x8 slots (Gen3 x8), Low profile half-length / - 1 x PCIe x16 slot (Gen3 x16), Low profile half-length
OCP Slots:
2x OCP mezzanine slots with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
Network:
2x 1GbE LAN ports (1 x Intel I350-AM2)
Video Out:
1x VGA
External Bays:
8x SATA/SAS + 2x U.2 2.5" Hot-Swappable
USB Ports:
2x USB 3.0 (front), 2x USB 3.0 (rear)
COM Ports:
1x COM (RJ45 Type)
TPM Support:
1 x TPM Header
Power Supply:
1200W 80 PLUS Platinum Redundant PSU (1+1)
Cooling Fans:
8x 40x40x56mm (23'000rpm)
Price: $2,060.00
