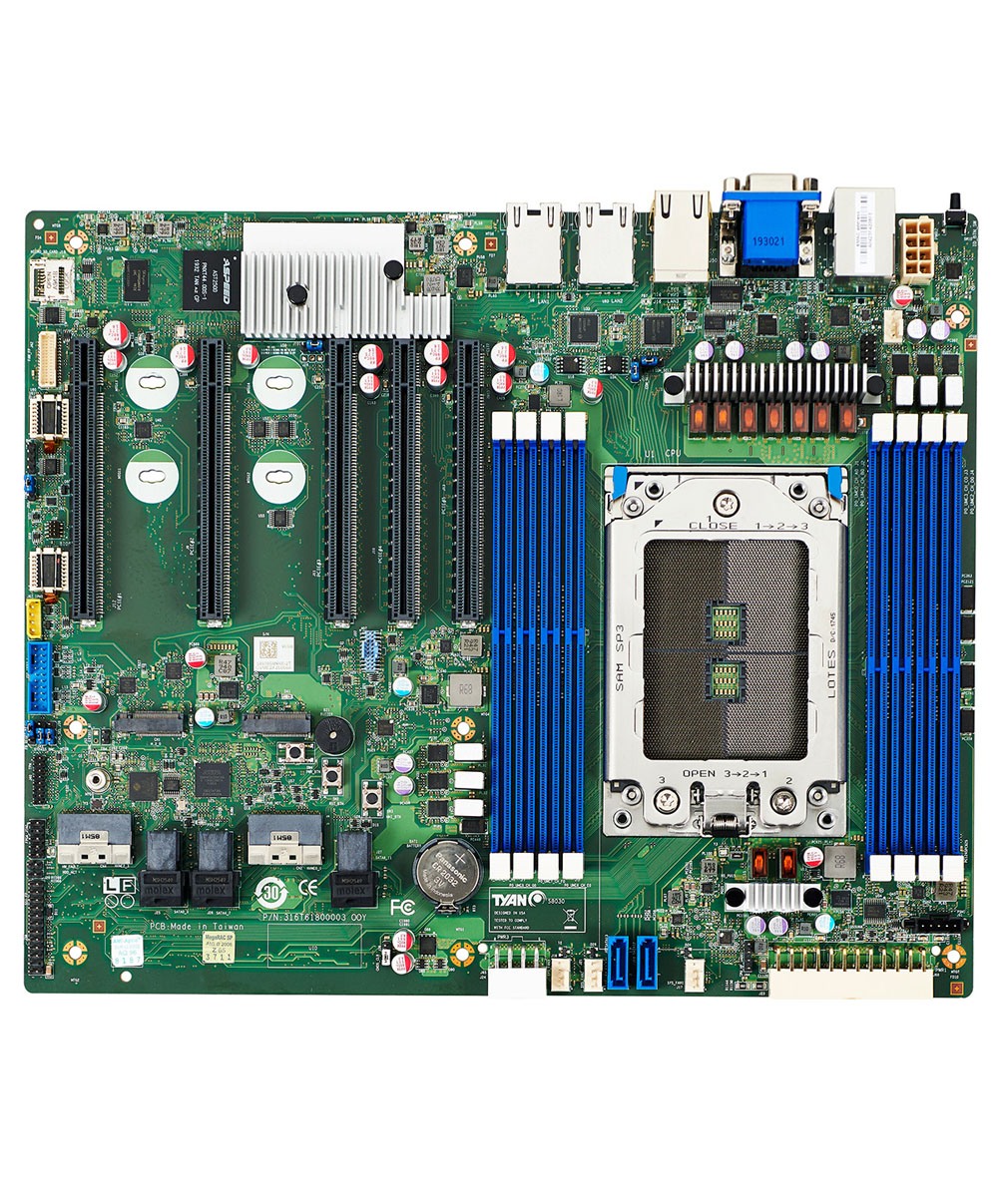

Tyan S8030GM2NE 2x 1GbE ATX
Tyan S8030GM2NE 2x 1GbE ATX
Warranty:
3 Years
Form Factor:
ATX, 12" x 9.8"
CPU Support:
EPYC 7002 Series, Max up to 225W
Memory Type:
DDR4 ECC RDIMM / LRDIMM
Memory Slots:
8
Memory Speed:
Up to 3200 MHz
Memory Capacity:
Up to 512GB RDIMM, 1TB LRDIMM, 2TB LRDIMM 3DS
Expansion Slots:
5x PCIe Gen4 x16
SATA Ports:
2x SATA + 3x SSF-8643 (12x SATA)
NVMe Slots:
2x M.2 2280~22110, 2x SSF-8654 (4x NVMe)
Network:
2x 1GbE (I210-AT), 1x IPMI
USB:
2x USB3.1 Gen1 ports (rear)
COM:
1x COM Header
Graphics:
1x ASPEED AST2500
Price: $450.00
