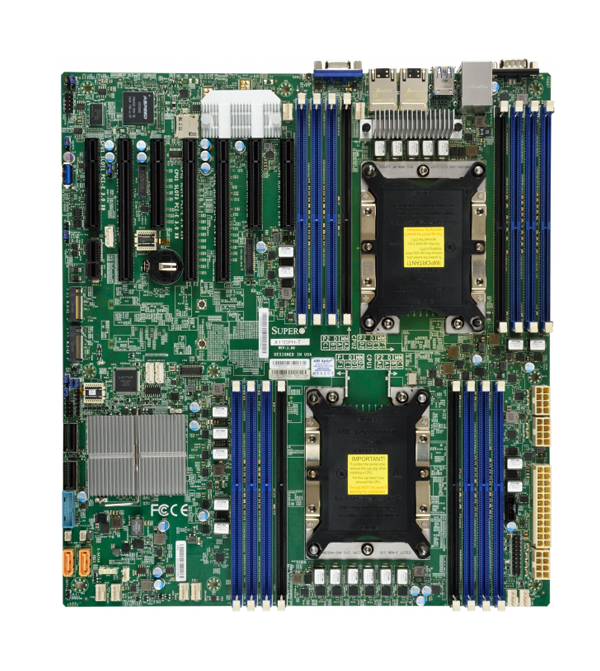

Supermicro X11DPH-TQ C624 E-ATX
Supermicro X11DPH-TQ C624 E-ATX
Warranty:
3 Years - Supermicro
Chipset:
Intel C624
Form Factor:
E-ATX, 12" x 13" (30.48cm x 33.02cm)
CPU Support:
Dual Scalable Xeon (70-205W TDP)
Memory Type:
DDR4, ECC 3DS LRDIMM, ECC LRDIMM, ECC RDIMM
Memory Slots:
16
Memory Speed:
Up to 2666MHz
Memory Capacity:
Max 2TB ECC 3DS LRDIMM / 1TB ECC RDIMM
Expansion Slots:
3x PCIe 3.0 x16, 4x PCIe 3.0 x8
SATA Support:
10x SATA3 Ports
RAID Support:
0,1,5,10 via Intel Chipset
M.2 Support:
2x M.2 22110 (PCIe 3.0 x4 - RAID 0,1)
Network:
2x 10Gbase-T via Intel X557, 1x RJ45 IPMI
Video Out:
1x VGA (ASPEED AST2500)
USB Ports:
7x USB 3.0 (4x Rear + 2x via Header + 1x Type-A)
COM Ports:
2x COM Ports (1x Rear, 1x via Header)
TPM Support:
1x TPM Header
QAT Support:
Yes
Availability:
Special Order with 3 to 5 Days Lead Time
Price: $1,025.00
