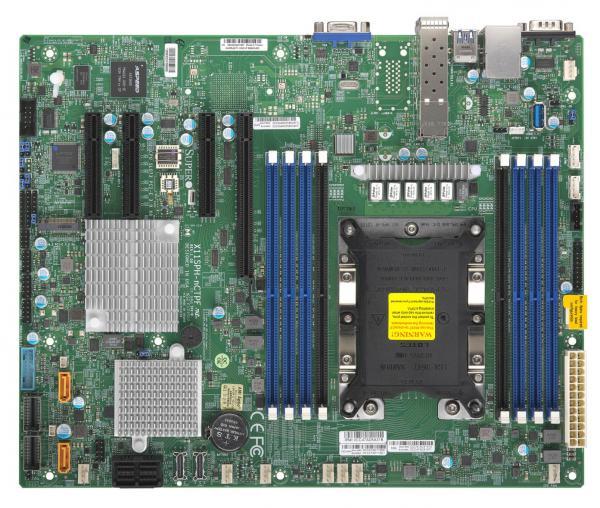

Supermicro X11SPH-nCTPF C622 ATX
Supermicro X11SPH-nCTPF C622 ATX
Warranty:
3 Years - Supermicro
Chipset:
Intel C622
Form Factor:
ATX, 12" x 9.6"
CPU Support:
Single Scalable Xeon (205W TDP)
Memory Type:
DDR4 ECC, R/LRDIMM, 288-pin
Memory Slots:
8
Memory Speed:
Up To 2666 MHz
Memory Capacity:
1TB ECC 3DS LRDIMM, 512GB ECC LRDIMM, 256GB ECC RDIMM
Expansion Slots:
1x PCIe 3.0 x16, 1x PCIe 3.0 x8 (x0 / x8), 1x PCIe 3.0 x8, 1x PCIe 3.0 x4 ( in x8)
SATA Ports:
10x SATA3 (2x SuperDOM Support)
SAS Ports:
8x SAS3 via Broadcom 3008 (RAID 0, 1, 10)
M.2 Slots:
1x M.2 2280 (PCIe 3.0 x4 & SATA)
OCuLink Ports:
2x NVMe PCIe 3.0 x4
Network:
2x Inphi CS4227 10Gb SFP+ LAN ports, 1x IPMI
Video Out:
1x VGA (ASPEED AST2500 BMC)
USB Ports (Internal):
6x USB 2.0, 2x USB 3.0, 1x USB 3.0 Type-A
USB Ports (External):
2x USB 2.0, 2x USB 3.0
COM Ports:
2x COM (1x Rear, 1x Header)
TPM Support:
1x TPM Header
Price: $540.00
