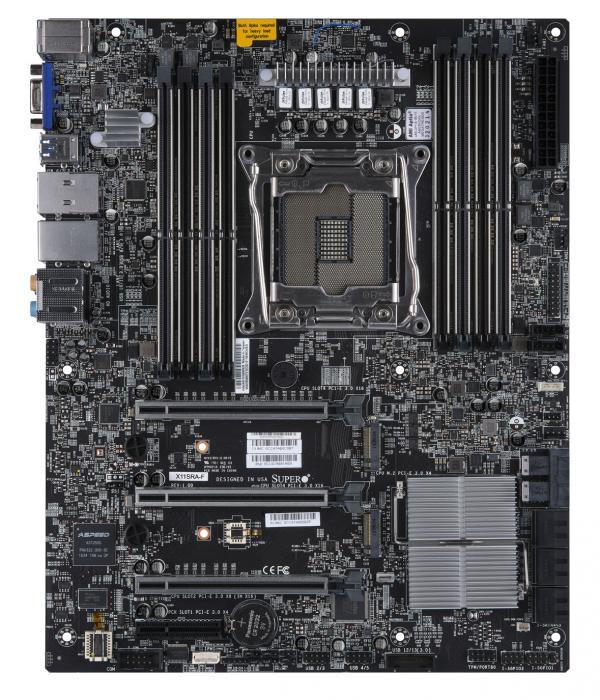

Supermicro X11SRA-F IPMI C422 ATX
Supermicro X11SRA-F IPMI C422 ATX
3 Years - Supermicro
Intel C422
Form Factor:
ATX, 12" x 9.6"
CPU Support:
Xeon Skylake-W - Up to 160W TDP
Memory Type:
DDR4 288-pin, RDIMM / LRDIMM
Memory Slots:
Memory Speed:
Up to 2666 MHz
Memory Capacity:
Expansion Slots:
3x PCIe 3.0 x16, 1x PCIe 3.0 x4
SATA Ports:
6x SATA3 Ports, RAID 0, 1, 5, 10
M.2 Ports:
2x PCIe x4 (22110) w/ RAID 0,1
1x Intel i219LM, 1x Aqantia 5G AQC108
ALC 1220 7.1 HD
USB Ports:
6x USB 3.0 (4x Rear, 2x Header), 6x USB 2.0 (2x Rear, 4x Header), 2x USB 3.1A
COM Ports:
1x COM Port (Header)
TPM Support:
1x TPM Header
Onboard Graphics:
1x AST2500, VGA
Price: $345.00
GMT-W7 Is A Configurable System That Can Use This Component
Quiet Xeon-W Workstation
Compact Quadro or Radeon 3D Modeling System

Designed for Professionals Using SolidWorks & CATIA

Configurable with 2 GPUs with Operational Noise Below 39dBA
