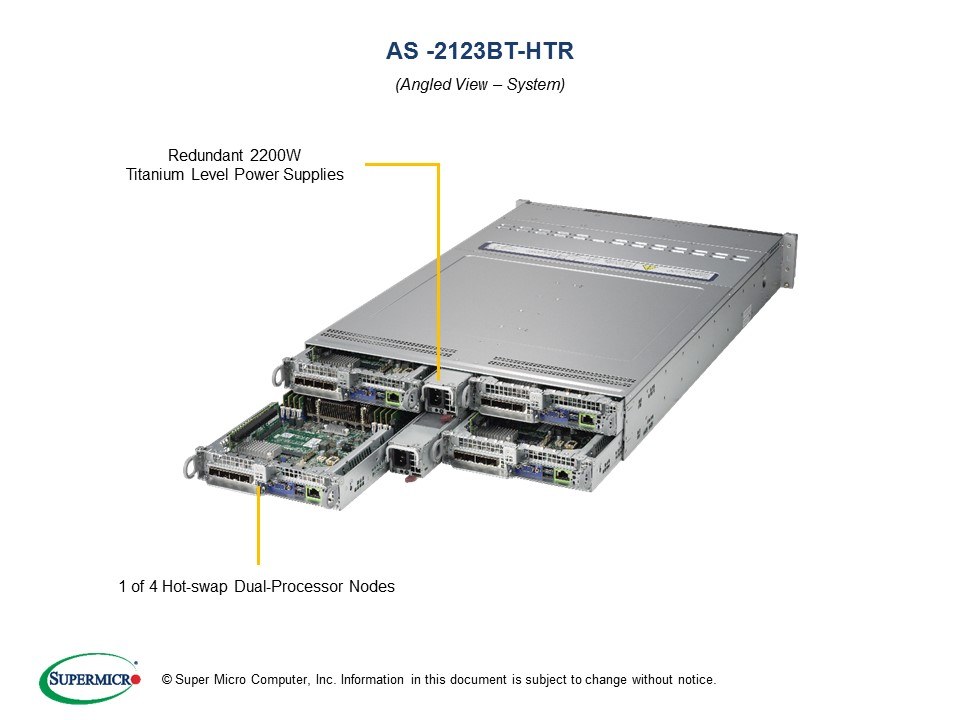

Supermicro EPYC 2123BT-HTR + H11DST-B BigTwin 2U
Supermicro EPYC 2123BT-HTR + H11DST-B BigTwin 2U
Warranty:
3 Years - Supermicro
Dimensions (HxWxD):
3.47" x 17.25" x 28.5"
Weight:
85 lbs / 38.6 kg Gross, 54.5 lbs / 24.7 kg Net
Material:
Steel
Motherboard:
4x Super H11DST-B Nodes (included)
Processor:
Dual AMD EPYC 7000-series per node
Graphics:
ASPEED AST2500 BMC per node
Memory Slots:
16 DIMM per node
Memory Type:
DDR4 ECC Registered, 288pin
Memory Capacity:
Up to 2TB RDIMM
M.2 Slots:
1x PCIe 3.0 x4/SATA
External Bays:

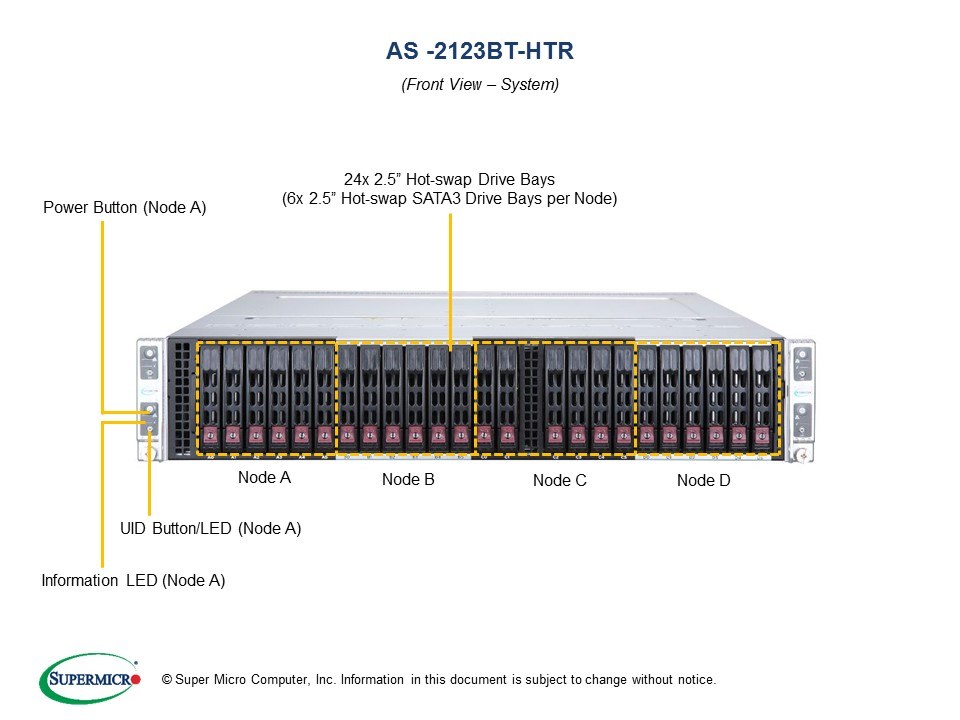

6x Hot-swap 2.5" SATA per node
Expansion:

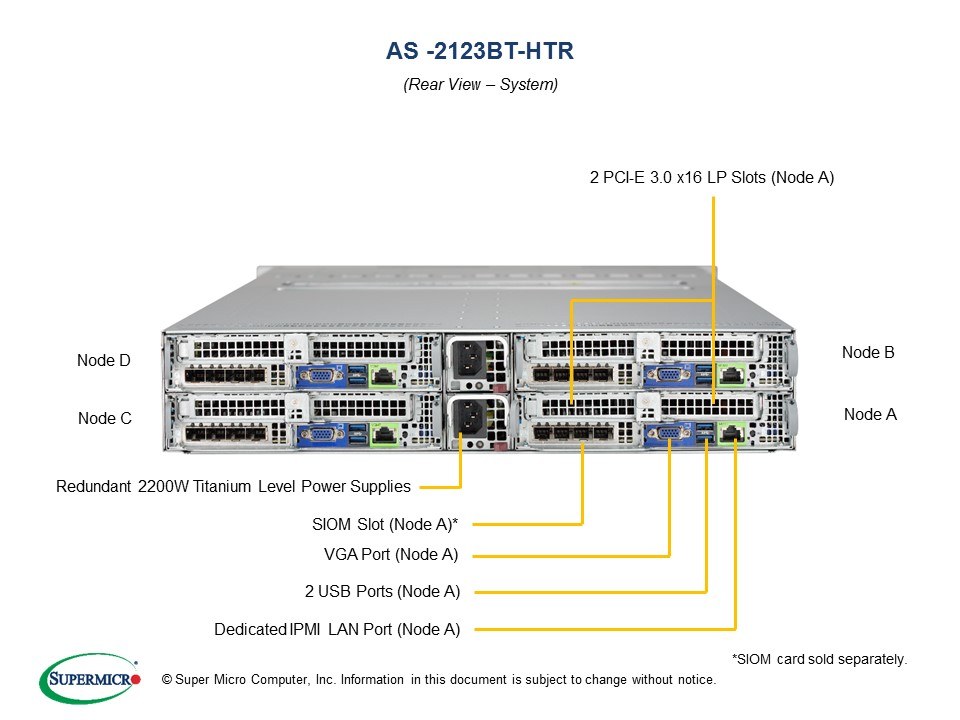

2x PCIe 3.0 x16, 1x SIOM
Network:
1x IPMI, SIOM sold seperately
USB Ports:
2x USB 3.0 (rear)
Power Supply:
2200W Redundant Titanium Level (96%)
Price: $5,300.00
