Supermicro 2-Xeon 1029P-NMR36L + X11DSF-E 36-Drive 1U
Supermicro 2-Xeon 1029P-NMR36L + X11DSF-E 36-Drive 1U
Warranty:
3 Years - Supermicro
Dimensions (HxWxD):
1.7" x 17.2" x 30"
Material:
Steel
Motherboard:
X11DSF-E
CPU Support:
Dual Xeon Scalable up to 205W
Video:
Aspeed 2500 BMC

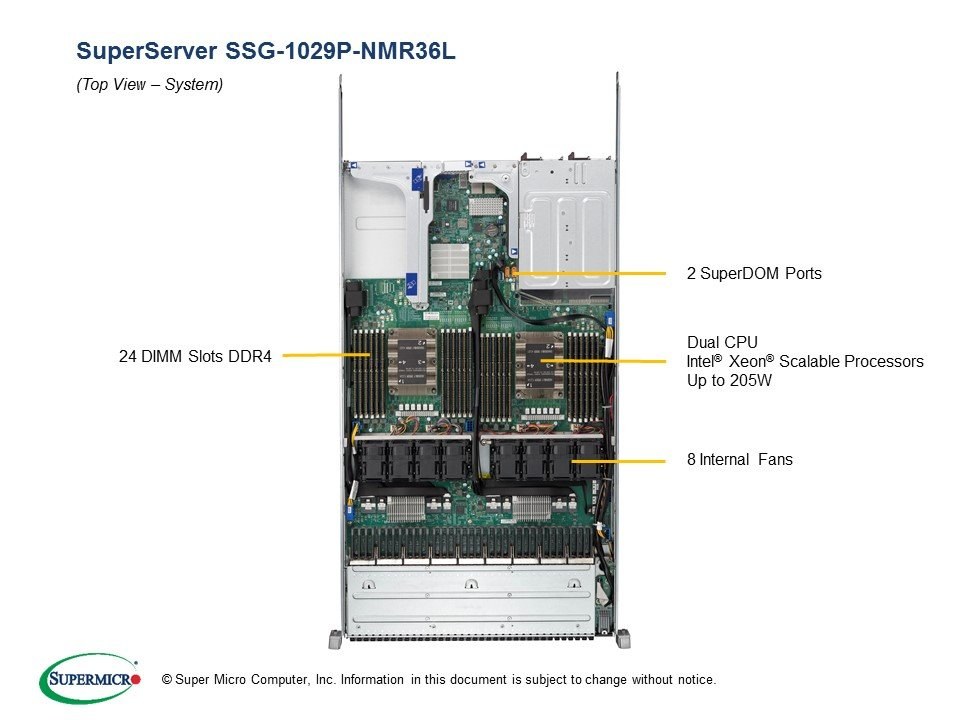

Memory Slots:
24
Memory Speed:
Up to 2666 MHz
Memory Capacity:
Up to 3TB ECC RDIMM
Expansion Slots:
2x PCIe 3.0 x16, 1x PCIe 3.0 x4 (Low profile)
SATA Support:
4x SATA3
SATADOM Support:
2
M.2 Support:
4x SATA M.2

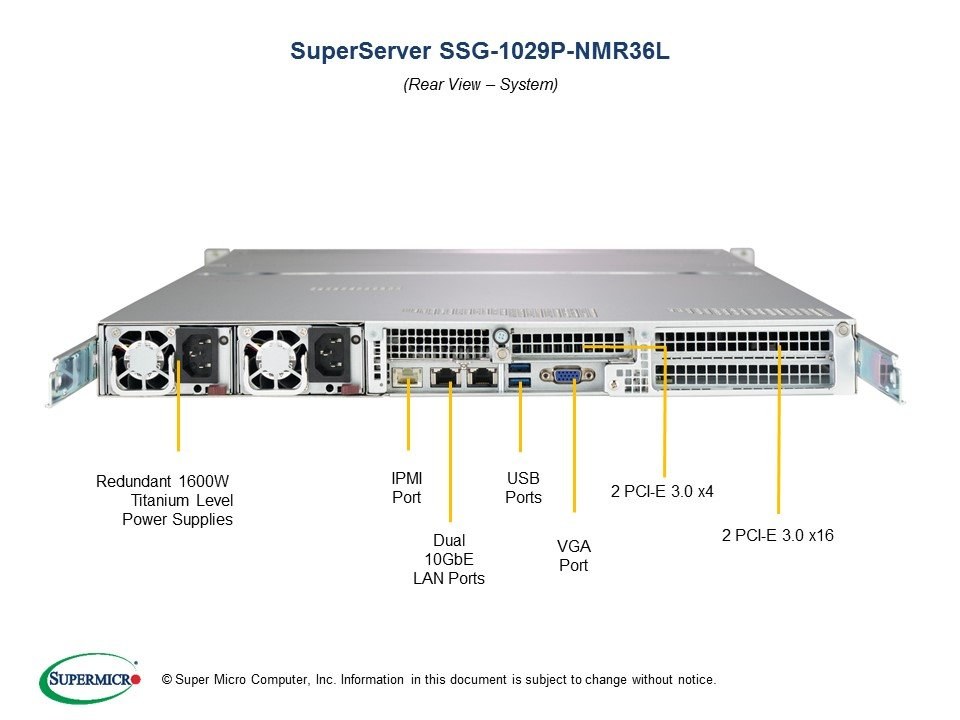

LAN:
2x Intel X550 10GBase-T, 1x Dedicated IPMI

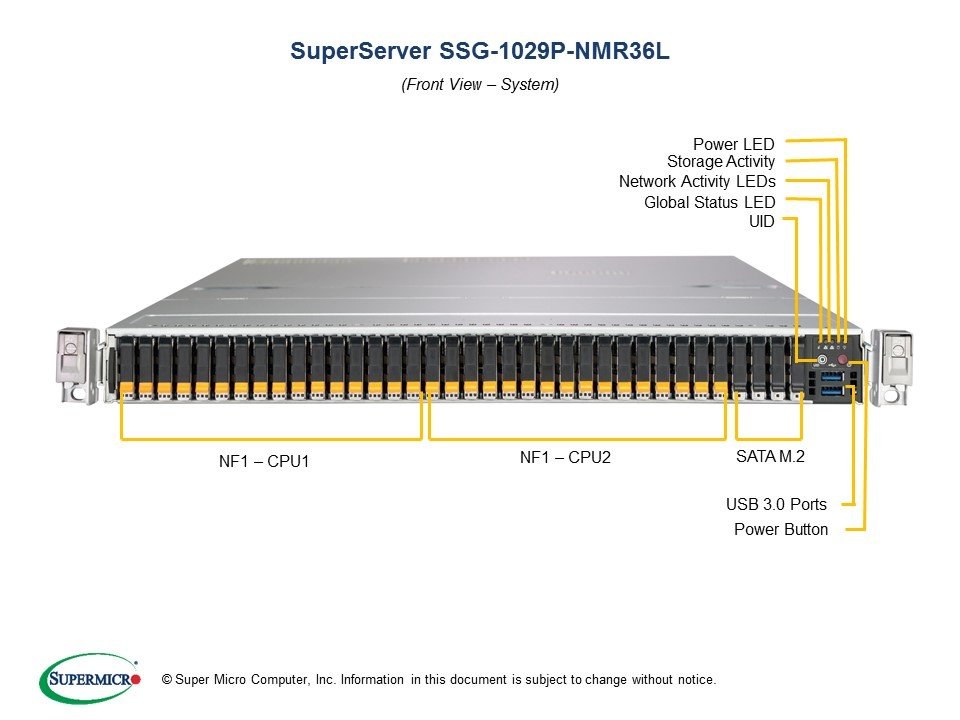

External Bay:

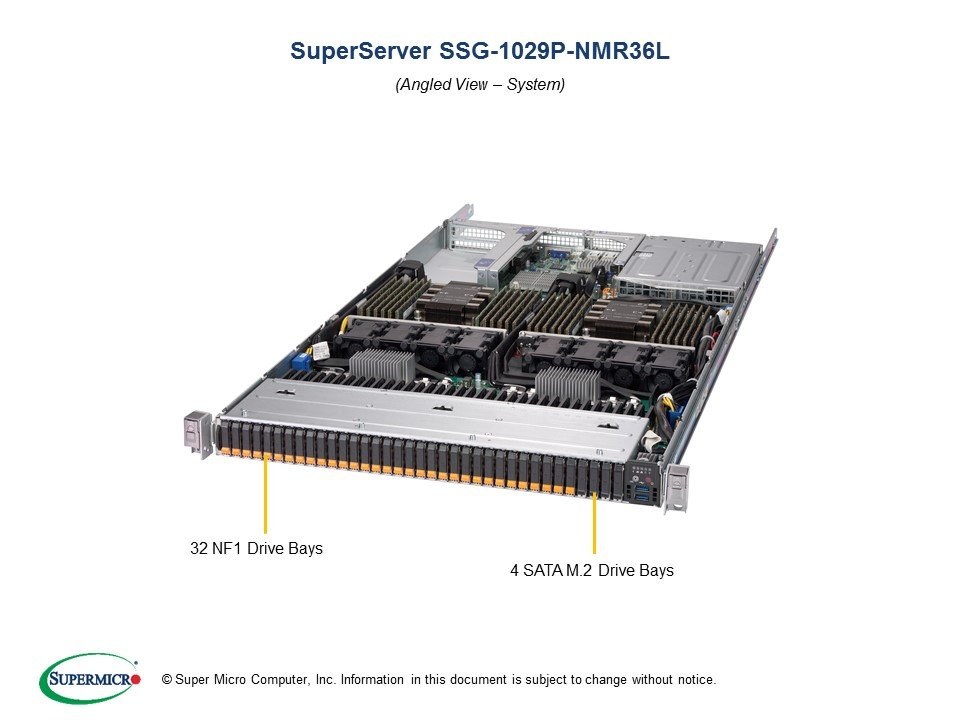

32x Hot-swap PCI-E NF1, 4x SATA3 M.2
Power Supply:
1600W Redundant Power Supplies with PMBus
Chassis:
CSE-121NF-R1K62P
Cooling Fans:
8x 40mm
COM Support:
1x COM port (header)
Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs, 2 DIMMs and 4 NVMe drives).
Price: $5,641.00
