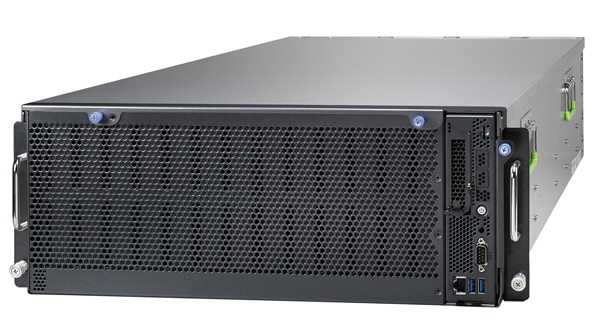

Tyan 2-Xeon Thunder SX FA100B7118 B7118F100V100HR 100-Drive 4U
Tyan 2-Xeon Thunder SX FA100B7118 B7118F100V100HR 100-Drive 4U
Warranty:
3 Years - Tyan
Dimensions (HxWxD):
6.86" x 17.13" x 39.96"
Material:
Steel
Weight:
157.7 lbs (gross), 99.2 lbs (net)
Processor:
Dual Xeon Scalable (up to 165W TDP)
Memory Slots:
16
Memory Capacity:
512GB RDIMM, 1,024GB LRDIMM, 2,048GB LRDIMM 3DS
SATA Support:
100x SATA3 6Gb/s
NVMe Support:
2x PCIe/SATA 2280~22110
Expansion Slots:
1x PCIe x16, 1x OCP 2.0 mezzanine
Network:
1x GbE IPMI (RTL8211E)
Video:
1x VGA, ASPEED AST2500
External Bays:
100x 3.5"
USB Ports:
2x USB3.0 (at front)
COM Ports:
1x DB-9 (at front)
Power Supply:
1,000W (100-127V), 1,600W (200-240V), 80+ Platinum 1+1
Cooling Fans:

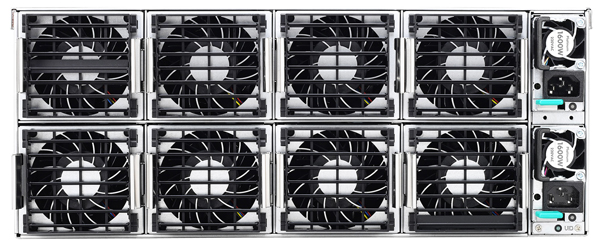

7+1 Hot-swap 80mm
MFG Part Number:
B7118F100V100HR
Price: $7,500.00
