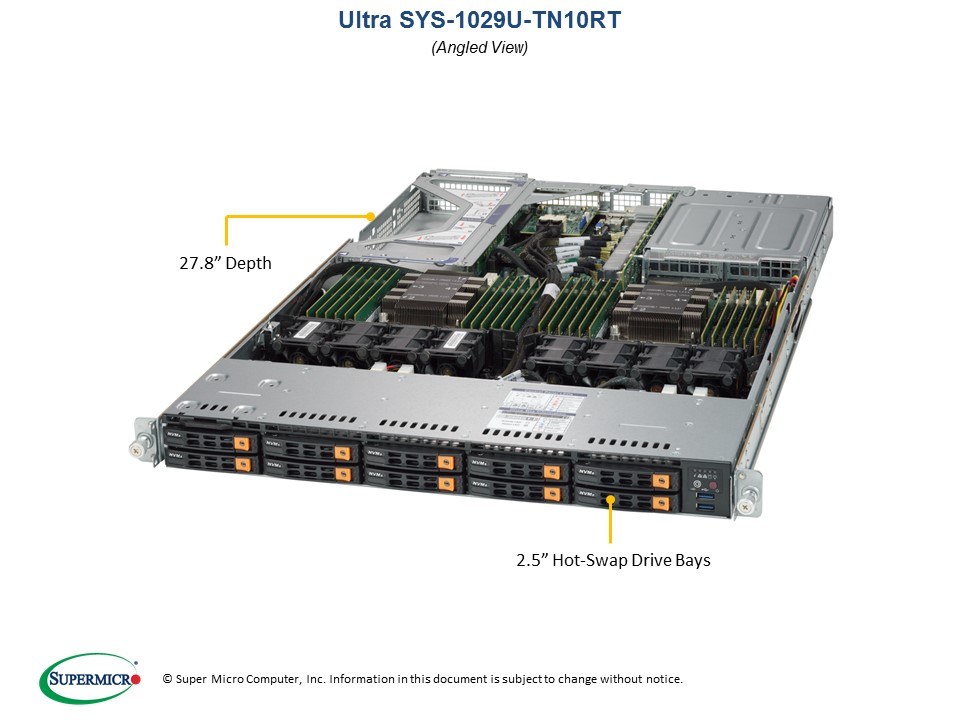

Supermicro 2-Xeon 1029U-TN10RT + X11DPU 10x NVMe Hot-Swap 1U
Supermicro 2-Xeon 1029U-TN10RT + X11DPU 10x NVMe Hot-Swap 1U
Warranty:
3 Years - Supermicro
Dimensions (HxWxD):
1.7" x 17.2" x 28.5"
Material:
Steel
Weight:
48 lbs (gross)

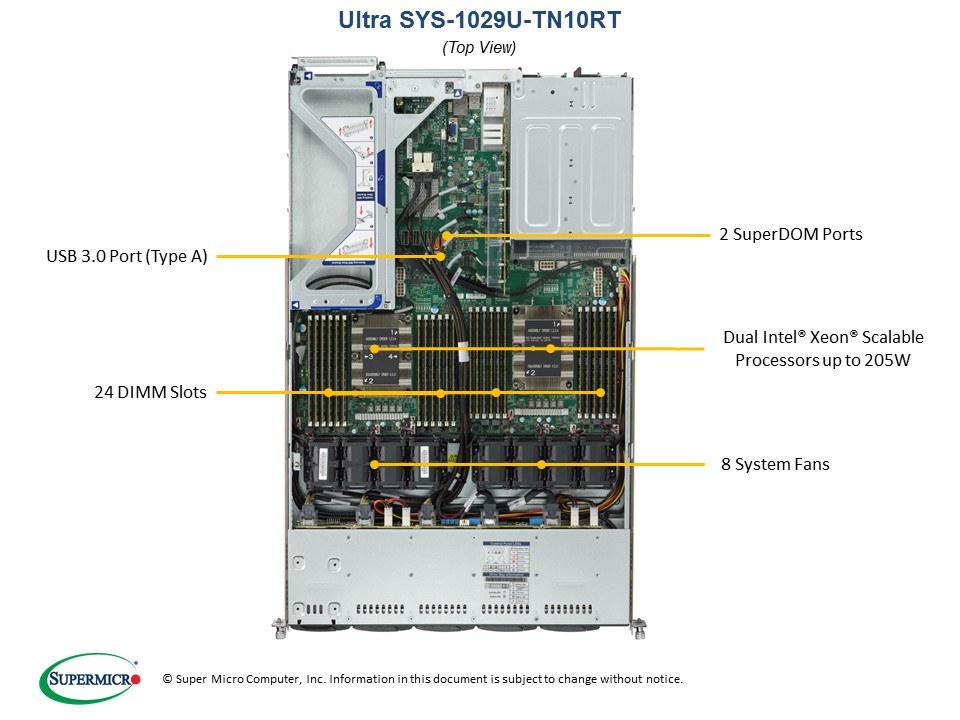

Motherboard:
Supermicro X11DPU
Processor:
Dual Scalable Xeon 28-Core (70-205W)
Graphics:
1x VGA, ASPEED AST2500 BMC
Memory Slots:
24x DDR4
Memory Capacity:
Max 3TB ECC 3DS LRDIMM, 3TB ECC RDIMM
NVMe Support:
2x M.2 (SATA3 + NVMe)

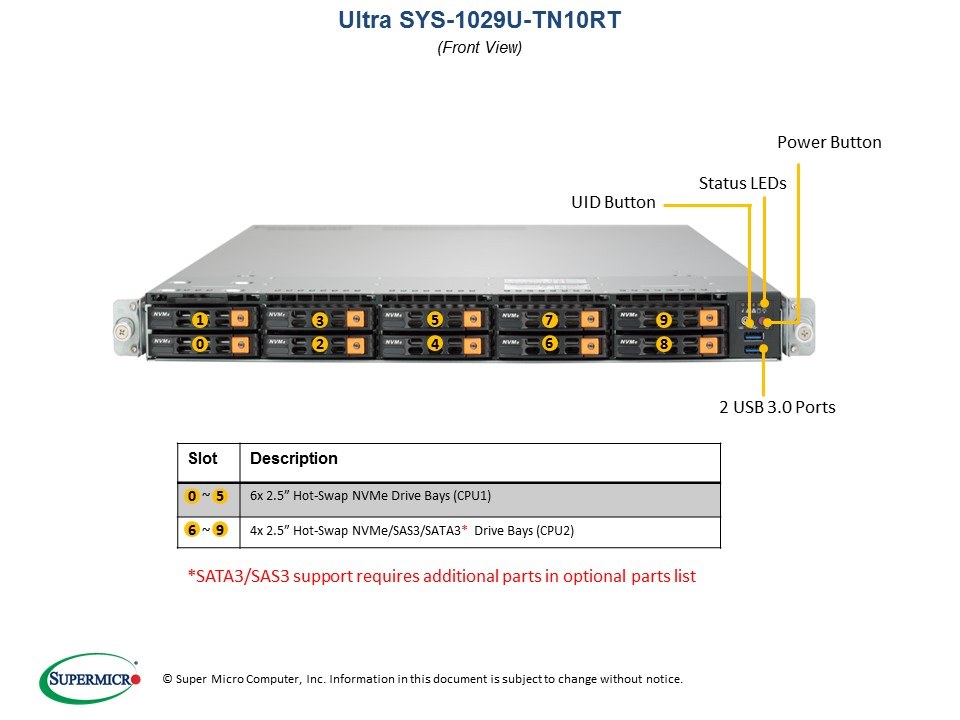

External Bays:
10x 2.5" NVMe
Expansion Slots:
2x PCIe 3.0 x16 slots (Full-height, 10.5"L)

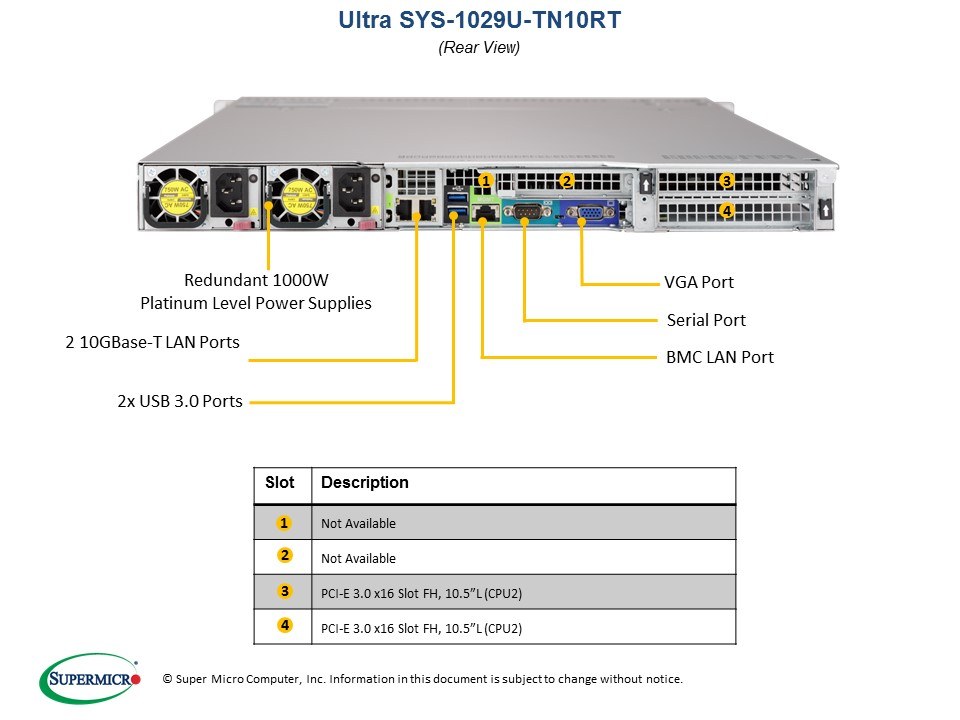

Network:
2x 10GBase-T, 1x IPMI
USB Ports:
5x USB 3.0 (2x rear, 2x front, 1x Type-A)
Power Supply:
1000W Redundant, Titanium 96%
Cooling Fans:
8x 40mm
Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs and 4 DIMMs).
Price: $2,630.00
