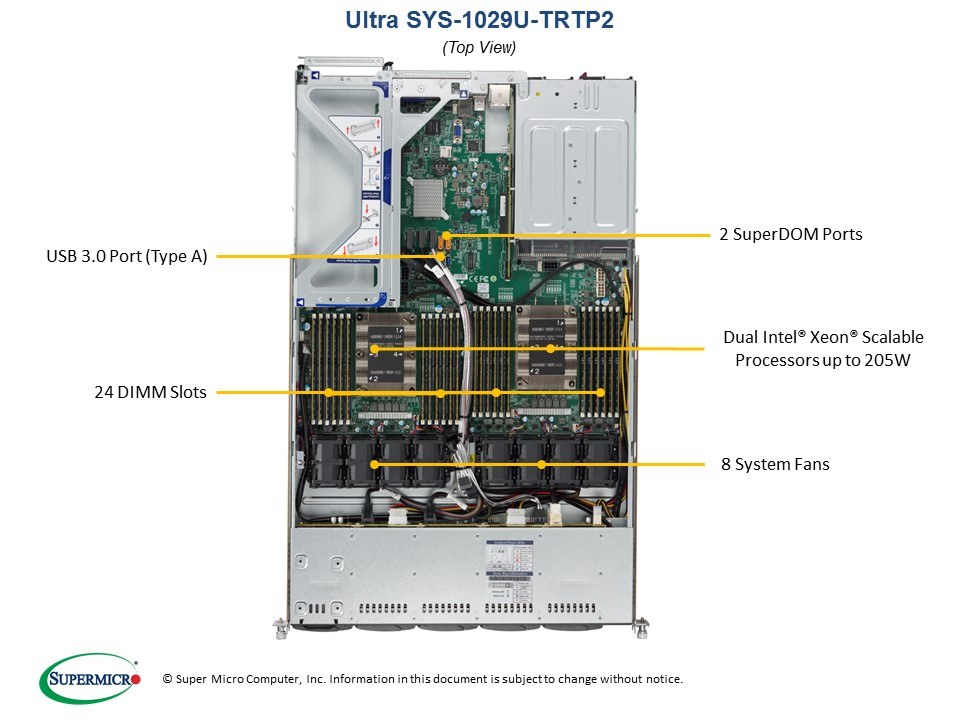

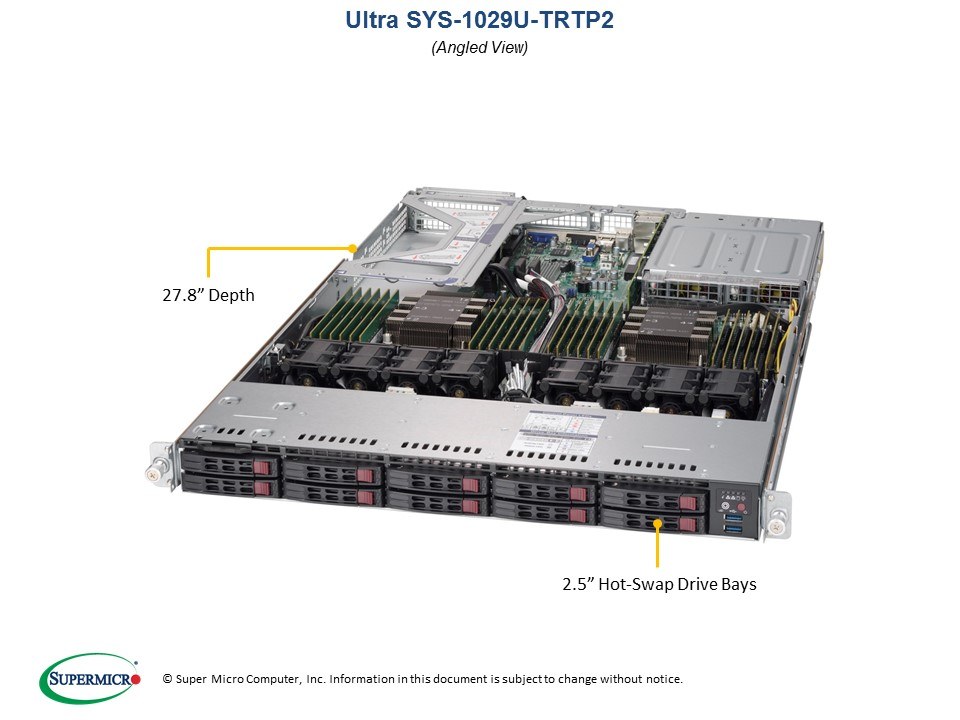

Supermicro 2-Xeon 1029U-TRTP2 + X11DPU 1U
Supermicro 2-Xeon 1029U-TRTP2 + X11DPU 1U
Warranty:
3 Years - Supermicro
Dimensions (HxWxD):
1.7" x 17.2" x 28.5"
Material:
Steel
Weight:
26 lbs (net), 41 lbs (gross)

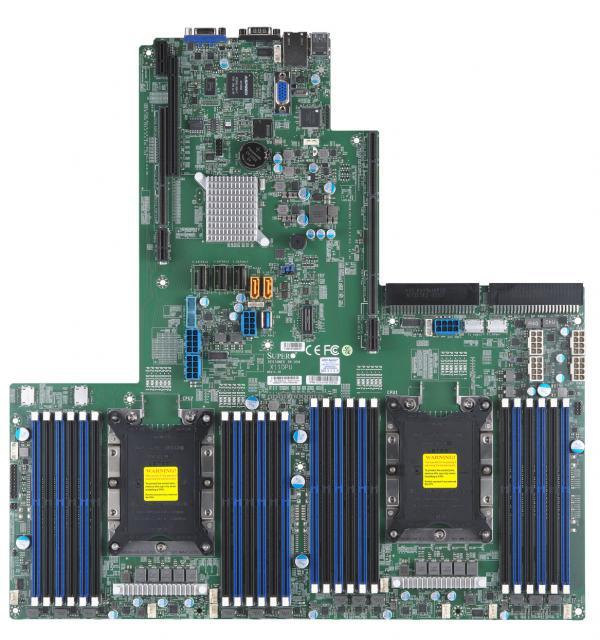

Motherboard:
Supermicro X11DPU
Processor:
Dual Scalable Xeon (70-205W)
Graphics:
1x ASPEED AST2500 BMC
Memory Slots:
24
Memory Capacity:
Up to 3TB LRIMM, RDIMM

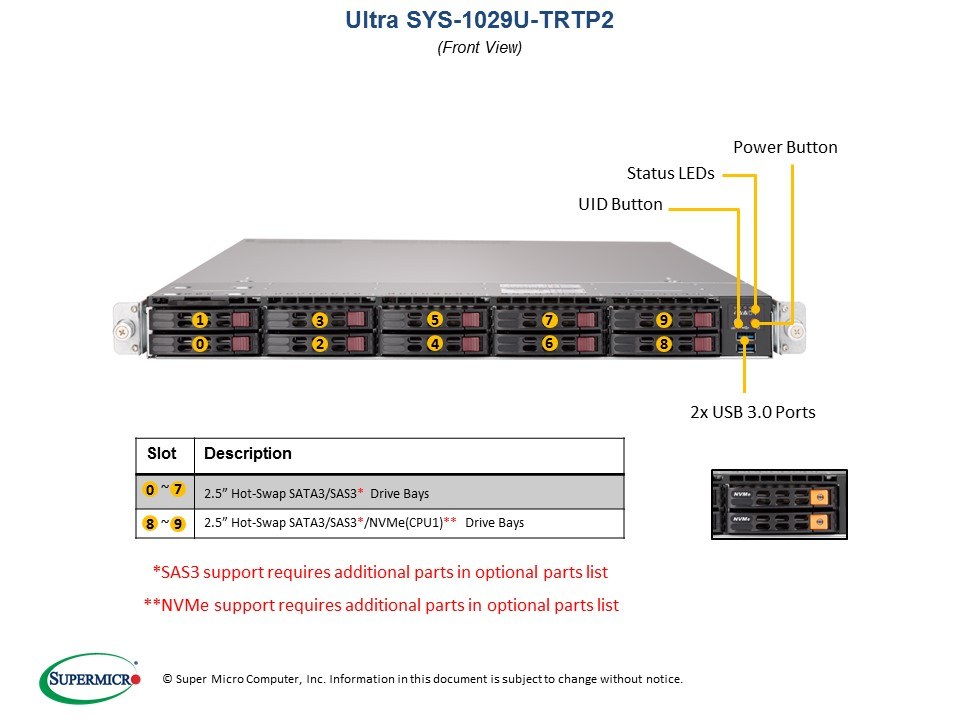

External Bays:
10x SATA3 2.5"
Expansion Slots:
2x PCIe 3.0 x16, 2x PCIe 3.0 x8
Network:
2x 10GbE SFP+, 2x 1GbE (X710-AM2 + i350-AM2)
USB Ports:
5x USB 3.0 (2x front, 2x rear, 1x Type-A)
Power Supply:
750W Redundant Platinum Level (94%+)
Cooling Fans:
8x 40mm
Chassis:
CSE-119UAC2-R751-T
Special Notes:
Nvidia GPU V100, P100, P5000, P6000
Due to the complexity of integration, this product is sold as a completely assembled system only (with minimum 2 CPUs and 4 DIMMs).
Price: $1,810.00
