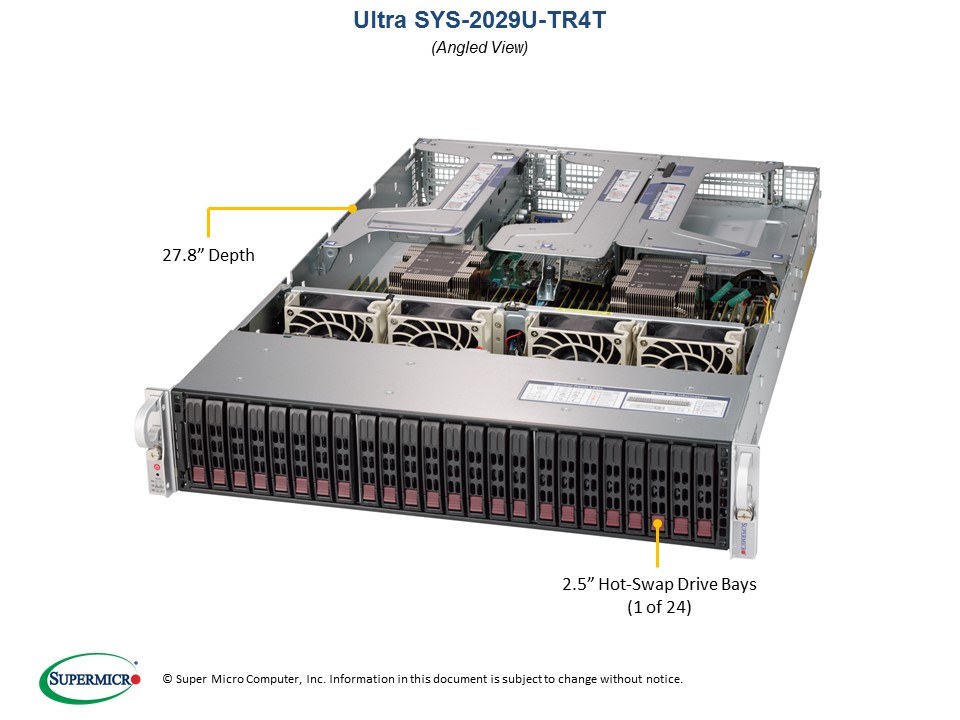

Supermicro 2029U-TR4T + X11DPU 2U
Supermicro 2029U-TR4T + X11DPU 2U
Warranty:
3 Years - Supermicro
Dimensions (HxWxD):
3.5" x 17.2" x 27.76"
Material:
Steel
Weight:
36 lbs Net, 72 lbs Gross

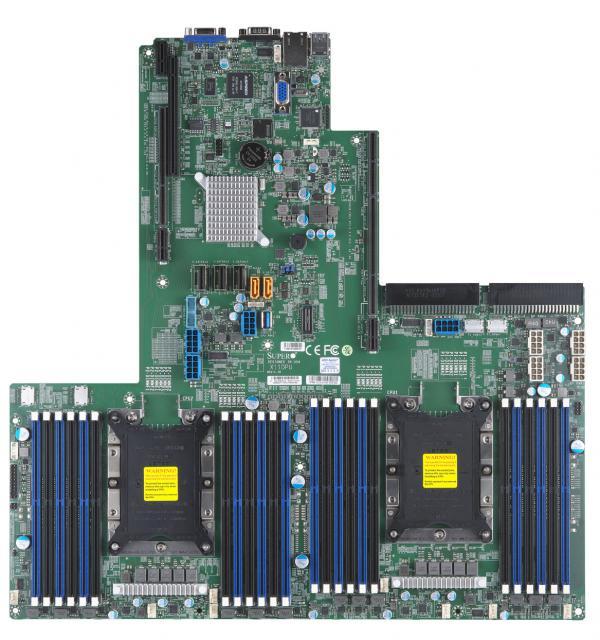

Motherboard:
Supermicro X11DPU, Intel C621
Processor:
Dual Scalable Xeon 28-Core (70-205W)
Graphics:
1x VGA, ASPEED AST2500 BMC

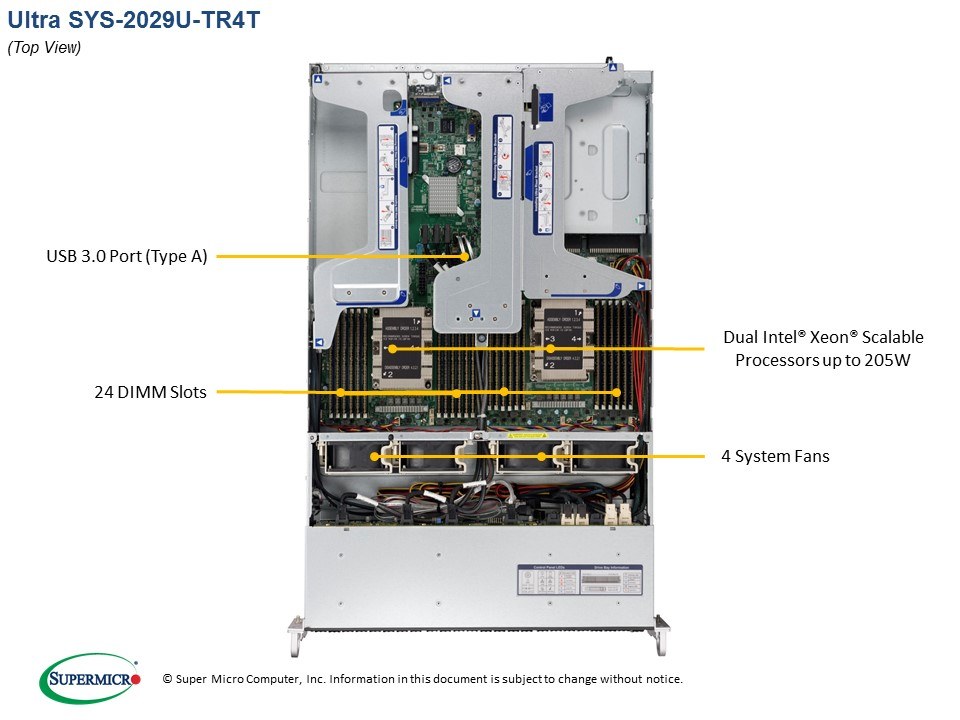

Memory Slots:
24x 288-pin, DDR4
Memory Capacity:
Max 3TB ECC 3DS LRDIMM, 768GB ECC RDIMM
SATA Support:
14x SATA3

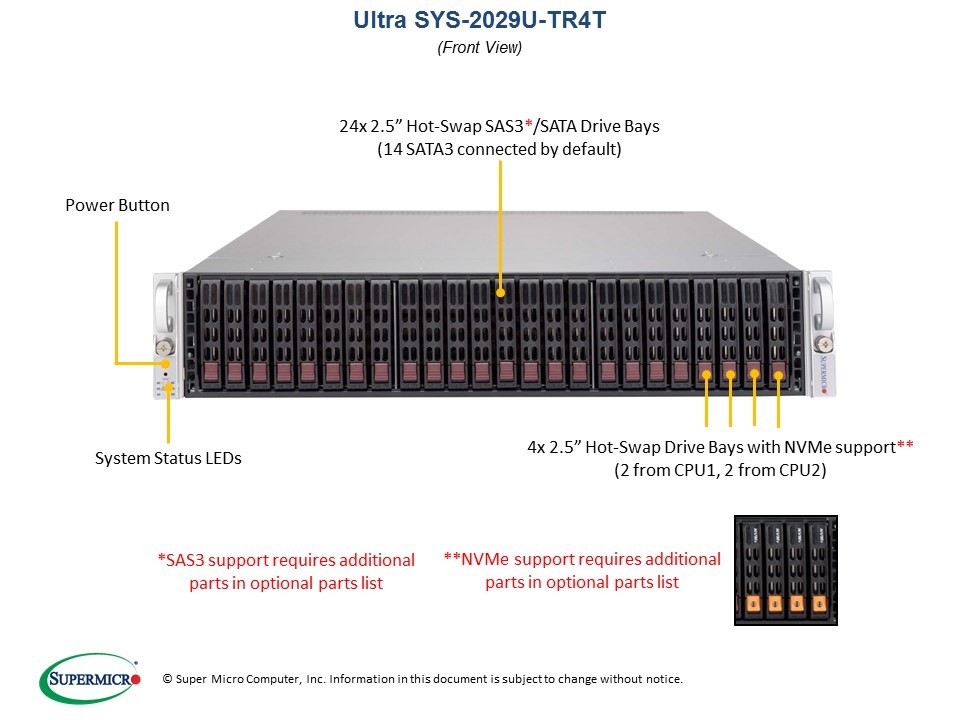

External Bays:
24x Hot-swap 2.5" ; (optional 20 SAS3 + 4 NVMe/SAS3)

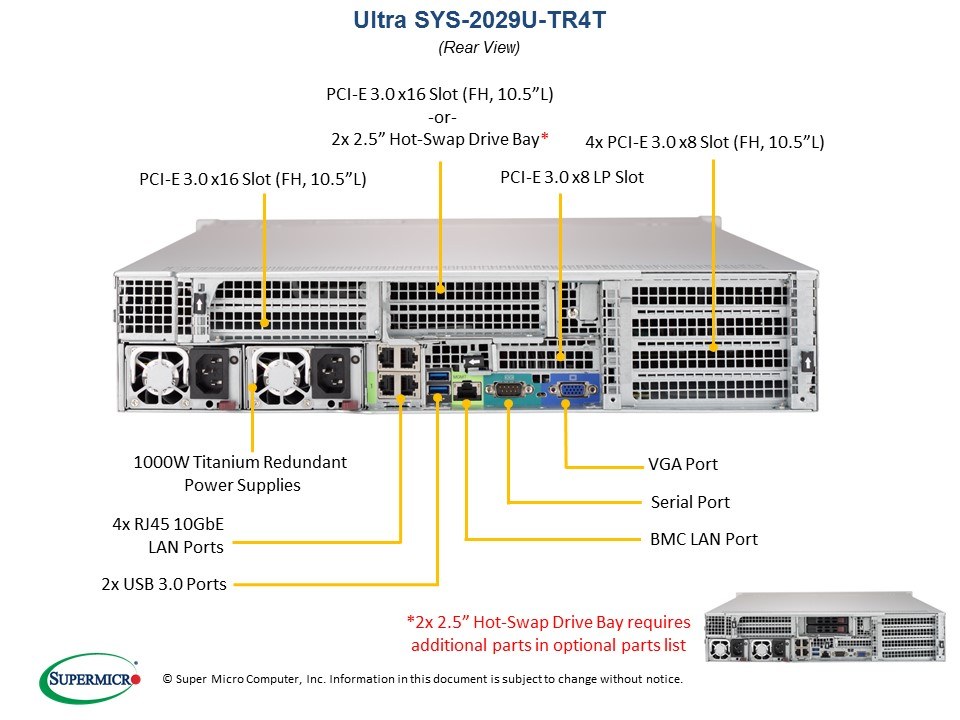

Expansion Slots:
2x PCIe 3.0 x16 FH 10.5" L, 4x PCIe 3.0 x8 FH 10.5" L, 1x PCIe 3.0 x8 LP
Network:
4x 10GBase-T (Intel X550), 1x IPMI
USB Ports:
2x USB 3.0 REAR
COM Ports:
1x Serial Port (Rear)
Power Supply:
1000W Redundant Power Supplies with PMBus
Cooling Fans:
4x Heavy duty 80mm PWM fans
Price: $2,675.00
