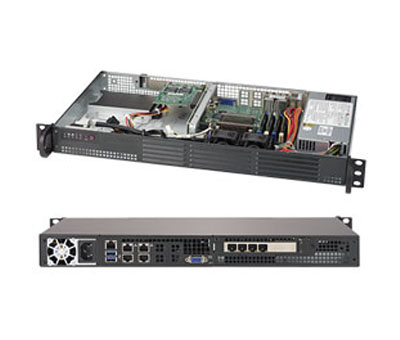

Supermicro 5019A-12TN4 + A2SDI-LN4F Atom C3850 1U
Supermicro 5019A-12TN4 + A2SDI-LN4F Atom C3850 1U
Warranty:
1 Year - Supermicro
Dimensions (HxWxD):
1.7" x 17.2" x 9.8"
Weight:
8 lbs (net), 10 lbs (gross)
Material:
Steel

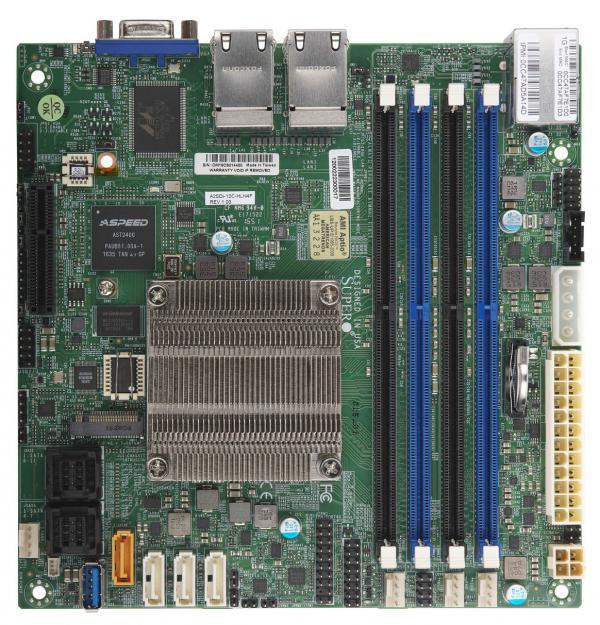

Motherboard:
A2SDi-LN4F Included
Processor:
Atom C3850 2.1GHz (Turbo 2.4GHz) 12-Core, 25W TDP
Graphics:
1x VGA, Aspeed AST2400
Memory Slots:
4
Memory Type:
DDR4 2400 MHz, SO-DIMM
Memory Capacity:
Up to 64GB Unbuffered ECC
SATA Support:
4x SATA3
M.2 Support:
1x M.2 PCIe x4 (2242 to 2280)
Internal Bays:
4x 2.5" or 2x 3.5"
PCIe Expansion:
1x PCIe 3.0 x4
Network:
4x GbE via Intel i350-AM4, 1x IPMI
USB Ports:
2x USB 3.0
TPM:
1x TPM (header)
Power Supply:
200 Watt 80-PLUS Gold, Low Noise
Cooling Fans:
2x 13K RPM PWM fans
Price: $948.00
