Supermicro E300-9A-8CN8 + A2SDV-8C-LN8F Atom C3758 1U
Supermicro E300-9A-8CN8 + A2SDV-8C-LN8F Atom C3758 1U
Warranty:
1 Year - Supermicro
Dimensions (HxWxD):
1.7" x 10" x 8.9"
Weight:
3.45lbs (net), 7.5lbs (gross)
Material:
Steel

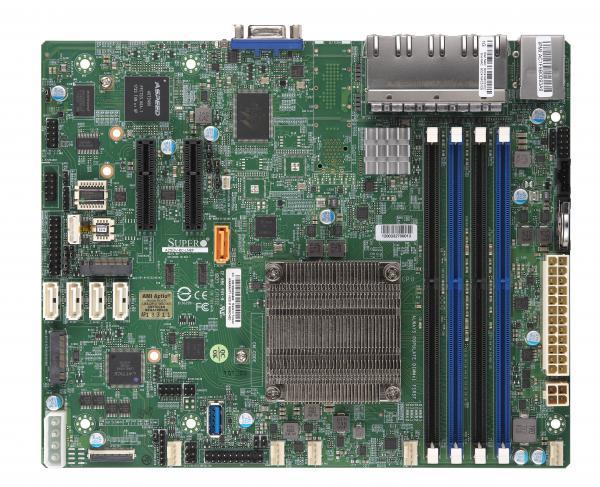

Motherboard:
A2SDV-8C-LN8F
Processor:
Atom C3758 2.2GHz 8-Core, 25W TDP
Graphics:
ASPEED AST2400 BMC
Memory Slots:
4
Memory Type:
DDR4
Memory Capacity:
Up to 256GB RDIMM
SATA Support:
2x SATA3
M.2 Support:
1x M.2 PCIe 3.0 x2, 2280
Internal Bays:
1x 2.5"
Expansion:
1x PCIe 3.0 x4 AOC slot (LP)
Network:
4x GbE Intel i350-AM4, 4x GbE Marvell 88E1543, 1x IPMI
USB Ports:
2x USB 3.0
TPM:
1x TPM Header
Power Supply:
84W External DC Power
Cooling Fans:
1x 40mm
Price: $780.00
