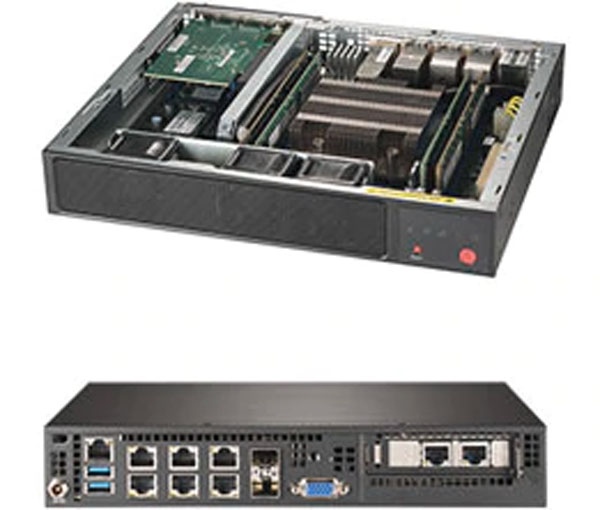

Supermicro E300-9D-8CN8TP + X11SDV-8C-TP8F Xeon D-2146NT 1U
Supermicro E300-9D-8CN8TP + X11SDV-8C-TP8F Xeon D-2146NT 1U
Warranty:
1 Year - Supermicro
Dimensions (HxWxD):
1.7" x 10" x 8.9"
Weight:
7.5 lbs (gross), 3.45 lbs (net)
Material:
Steel
Motherboard:

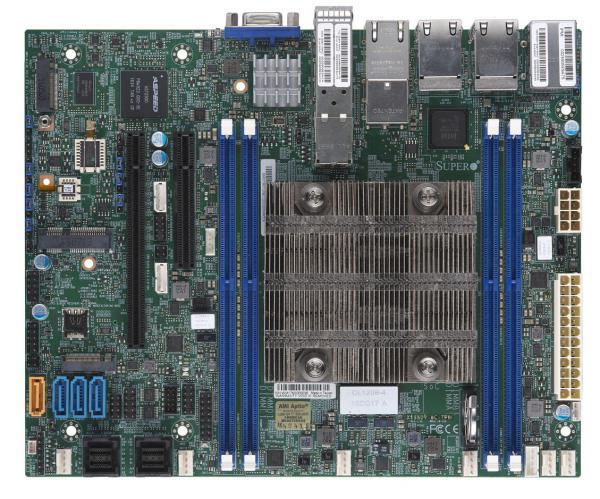

Includes X11SDV-8C-TP8F
Processor:
Xeon D-2146NT, 8-Core / 16-Thread
Graphics:
AST2500 BMC
Memory Slots:
4
Memory Type:
DDR4 ECC LRDIMM & ECC/Non-ECC RDIMM
Memory Speed:
Up to 2666 MHz
Memory Capacity:
Up to 512GB ECC LRDIMM, 256GB ECC/non-ECC
SATA Support:
4x SATA3
M.2 Support:
1x M.2 NGFF
Internal Bays:
1x 2.5"
PCIe Expansion:
1x PCI-E 3.0 x8
Network:
2x 10G SFP+ (SoC), 4x 1GbE (i350-AM4), 2x 10GBase-T (i210), 1x IPMI
USB Ports:
2x USB 3.0
TPM:
1x TPM Header
Power Supply:
Low Noise DC Power Supply
Cooling Fans:
3x 40x28mm 4-PIN PWM Fan
Price: $1,432.00
