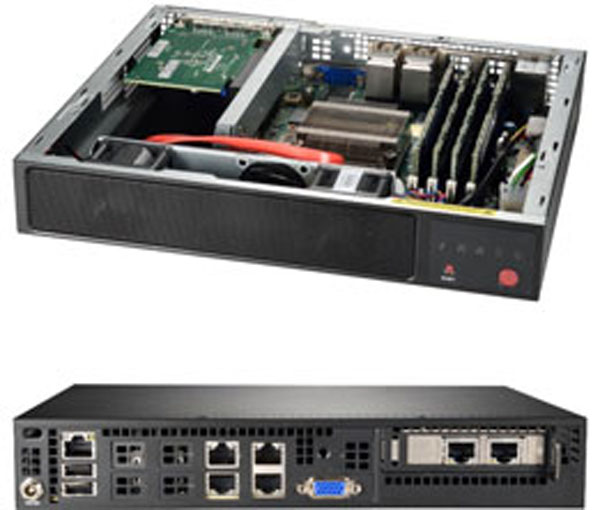

Supermicro E300-9A-4C + A2SDi-4C-HLN4F Atom C3558 1U
Supermicro E300-9A-4C + A2SDi-4C-HLN4F Atom C3558 1U
Warranty:
1 Year - Supermicro
Dimensions (HxWxD):
1.7" x 10" x 8.9"
Weight:
7.5 lbs (gross), 3.45 lbs (net)
Material:
Steel
Motherboard:
A2SDi-4C-HLN4F
Processor:
Atom C3558, 4-Core, 16W TDP, 2.2GHz
Graphics:
ASPEED AST2400
Memory Slots:
4
Memory Type:
DDR4, 288-pin
Memory Speed:
2400 MHz
Memory Capacity:
Up to 256GB DDR4 ECC RDIMM. 64GB DDR4 ECC UDIMM
Expansion:
1x PCIe 3.0 x4 (LP)
M.2 Support:
1x M.2 NVMe/SATA 2242~2280
Internal Bays:
2x 2.5" dependant if AOC installed
Network:
4x 1GbE LAN via C3000 SoC, 1x IPMI
USB Ports:
2x USB 2.0
TPM Support:
1x TPM 2.0 Header
Power Supply:
84W DC power adapter
Cooling Fans:
2x 40mm
Price: $480.00
