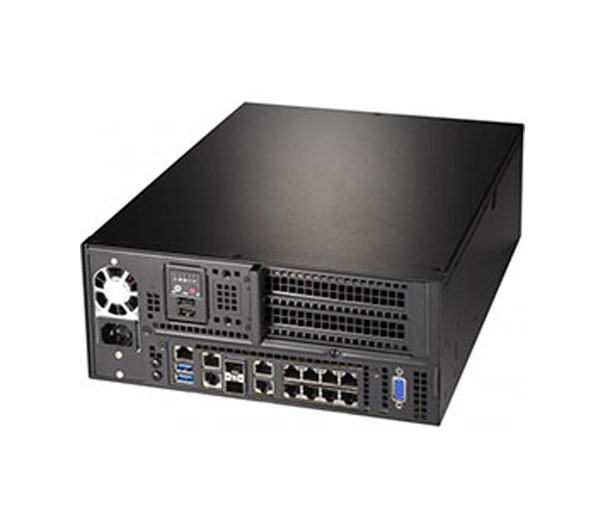

Supermicro E403-9D-14C-FN13TP + X11SDW-14C-TP13F Xeon D-2173IT
Supermicro E403-9D-14C-FN13TP + X11SDW-14C-TP13F Xeon D-2173IT
Warranty:
1 Year - Supermicro
Dimensions (HxWxD):
4.3" x 10.5" x 14.5"
Weight:
23 lbs (gross), 17 lbs (net)
Material:
Steel
Motherboard:
Includes X11SDW-14C-TP13F
Processor:
Xeon D-2173IT, 14-Core / 28-Thread
Graphics:
AST2500 BMC
Memory Slots:
4
Memory Type:
DDR4 ECC LRDIMM & Registered
Memory Speed:
Up to 2666 MHz
Memory Capacity:
Up to 512GB ECC LRDIMM, 256GB RDIMM
SATA Support:
4x SATA3
M.2 Support:
1x M.2 M-Key , 2280/22110
Internal Bays:
4x 2.5"
PCIe Expansion:
2x PCIe 3.0 x16 (FHFL)
Network:
2x 10G SFP+ (SoC), 8x 1GbE (i350-AM4), 2x 10GBase-T (i210), 1x IPMI
USB Ports:
2x USB 3.0 (front), 2x USB 2.0 (front)
COM:
1x COM via RJ45
Power Supply:
500W Low Noise
Cooling Fans:
3x 80x80mm PWM redundant fans
Price: $2,780.00
