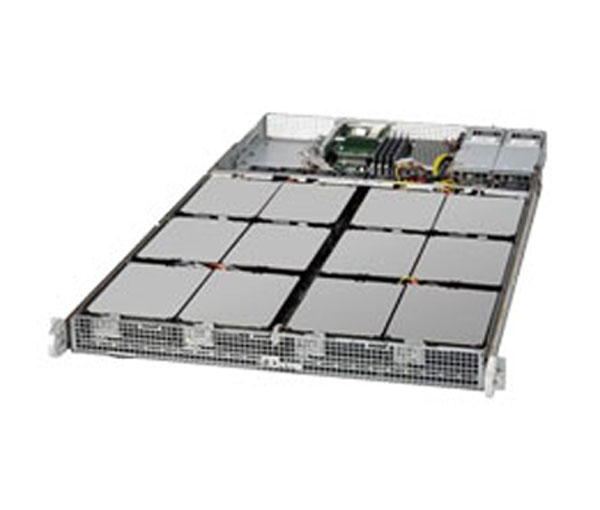

Supermicro 5019D8-TR12P + X11SDV-8C-TP8F 12-Drive Xeon D-2146NT 1U
Supermicro 5019D8-TR12P + X11SDV-8C-TP8F 12-Drive Xeon D-2146NT 1U
Warranty:
3 Year - Supermicro
Dimensions:
1.7" x 17.2" x 32"
Material:
Steel
Motherboard:

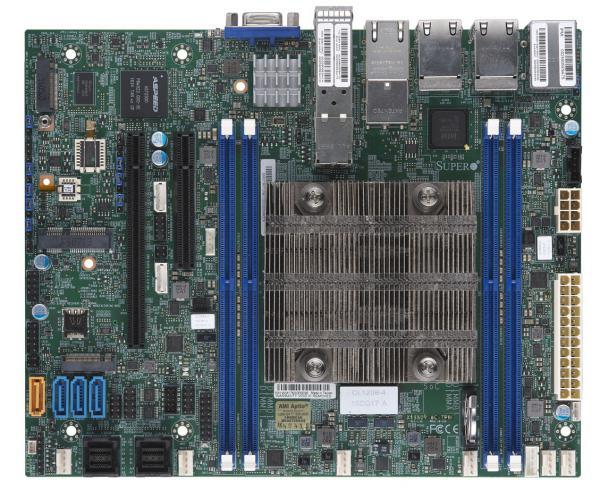

X11SDV-8C-TP8F
CPU Support:
Xeon D-2146NT, 8-Core / 16-Tread, 80W
Memory Slots:
4
Memory Speed:
Up to 2666 MHz
Memory Capacity:
Up to 512GB LRDIMM, 256GB RDIMM
Network:
2x 10G SFP+, 2x 1GbE w/ Intel I350-AM4, 2x 10GBase-T w/ Intel I210
Expansion Slots:
1x PCIe 3.0 x16, 1x Mini-PCIe with mSATA
External Bay:
None
Internal Bay:
12x 3.5" SATA3 (SAS3 with AOC)
Power Supply:
400W Redundant Power Supplies
Cooling Fans:
6x 40mm
Due to the complexity of integration, this product is sold as a completely assembled system only (including but not limited to memory and 12 HDDs).
Price: $2,380.00
